08. IKEv2

Overview

IKEv2/IPsec is a standards-based VPN protocol with native support in most operating systems. PUQVPNCP uses strongSwan as the IKEv2 implementation.

Key advantages:

No app required — built into iOS, macOS, Windows, Android, Linux
MOBIKE support — seamless switching between Wi-Fi and cellular without reconnection
Strong security — certificate-based authentication with modern ciphers
Automatic reconnection — reconnects transparently after network changes

IKEv2 is the best choice when you want zero-install VPN for end users — they can configure it using only the native OS settings.

Requirement: strongswan and strongswan-pki packages must be installed.

Global Settings

Navigate to VPN Servers > IKEv2 to configure global IKEv2 settings.

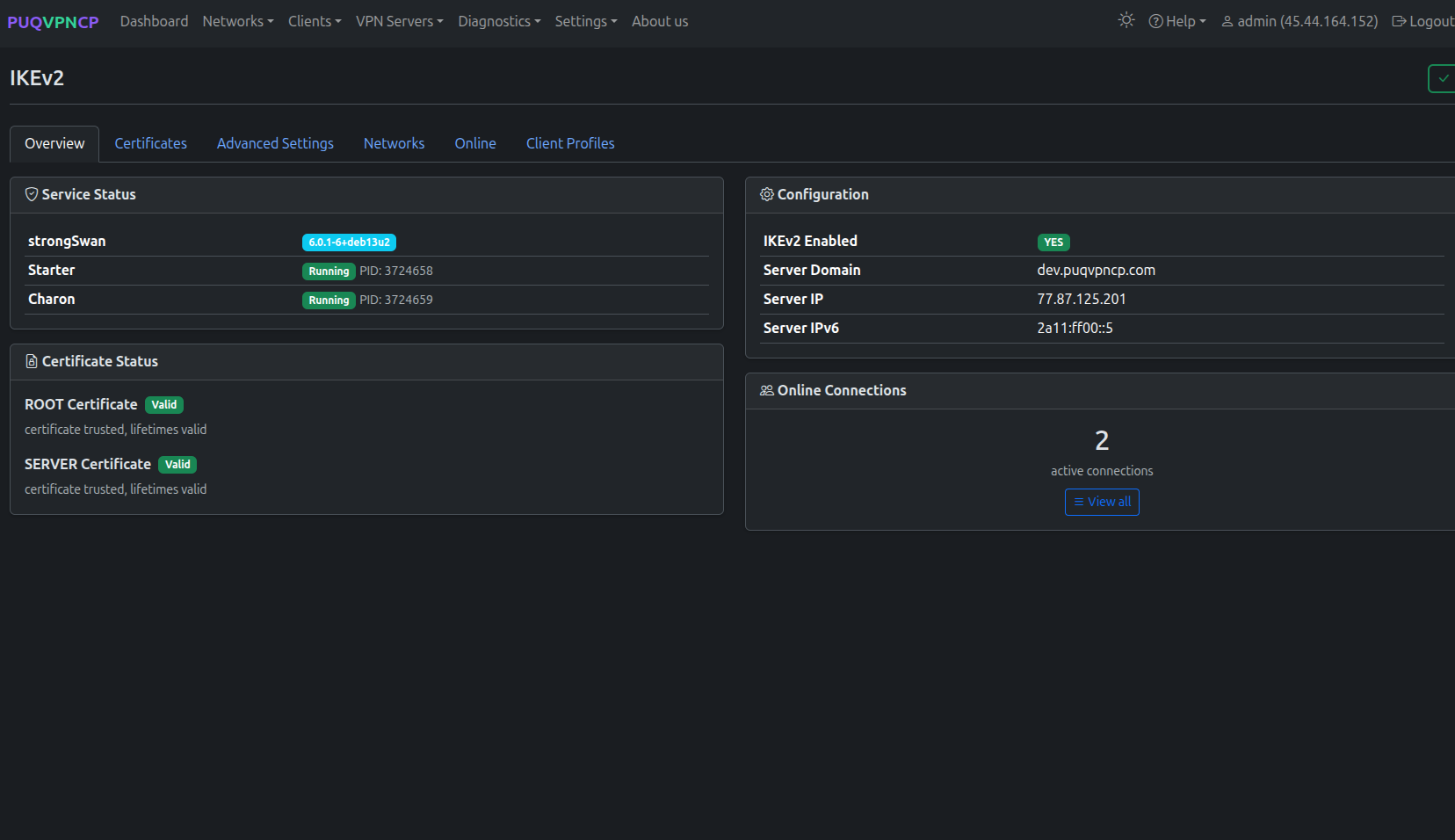

IKEv2 settings IKEv2 global settings

Setting	Description
Enabled	Enable/disable IKEv2 globally
Ports	500 / 4500 UDP (standard IPsec ports)

Advanced Settings

IKEv2 advanced settings

Setting	Description	Default
ESP	ESP encryption proposals	`aes256gcm128-sha256`
IKE	IKE encryption proposals	`aes256-sha256-modp2048`
IKE Lifetime (sec)	IKE SA lifetime	86400
Lifetime (sec)	Child SA lifetime	3600
DPD Delay	Dead Peer Detection interval	30
DPD Timeout	DPD timeout	150

Certificates

IKEv2 uses X.509 certificates for server authentication. PUQVPNCP manages the full PKI chain.

Root Certificate (CA)

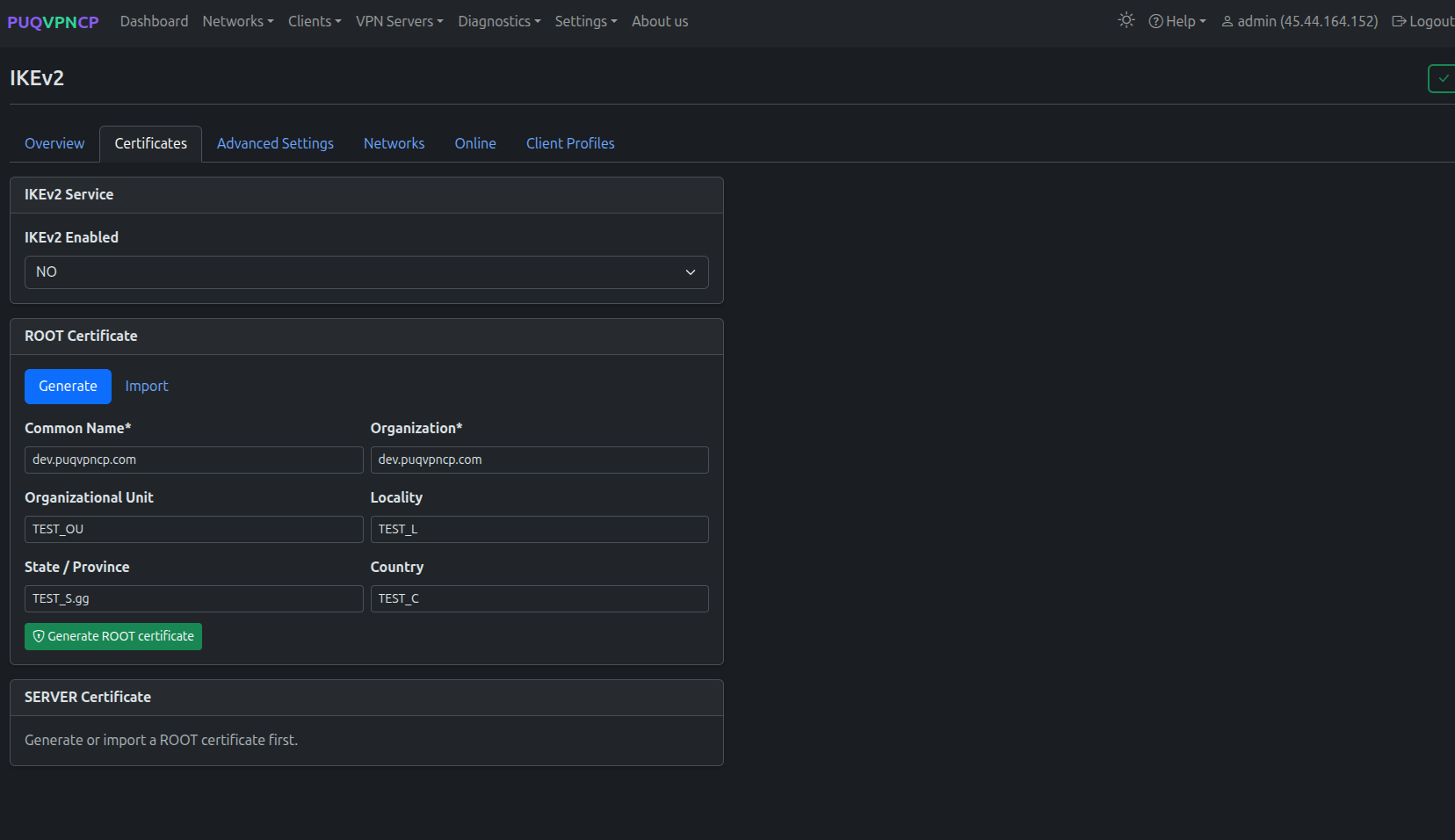

Root certificate IKEv2 Root CA certificate

The Root CA is created once and signs all server certificates. Clients must trust this CA.

Server Certificate

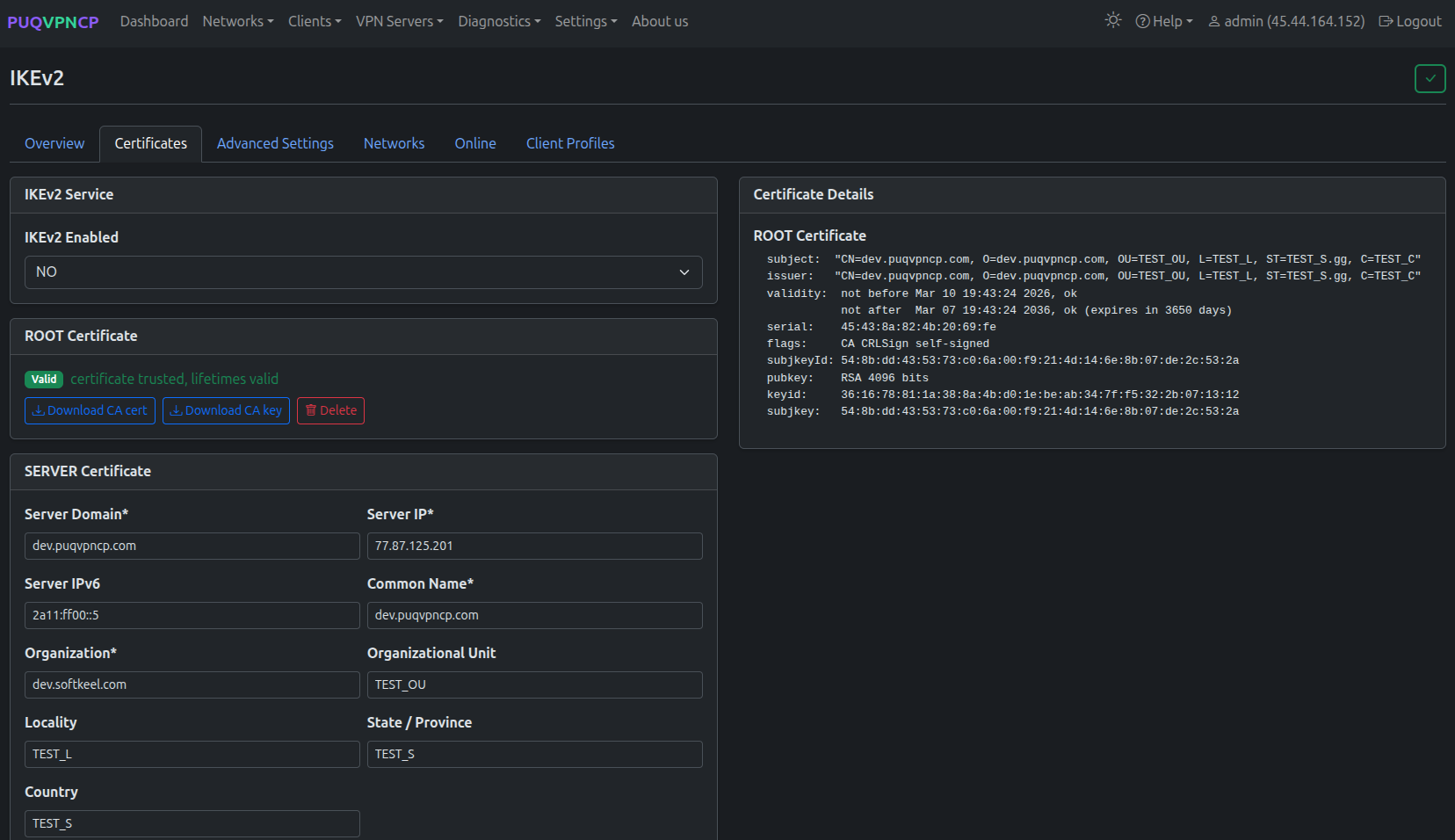

IKEv2 server certificate

The server certificate is signed by the Root CA and presented to clients during the IKE handshake.

Important: The server certificate's Subject Alternative Name (SAN) must match the VPN Domain or server IP.

Import Certificate

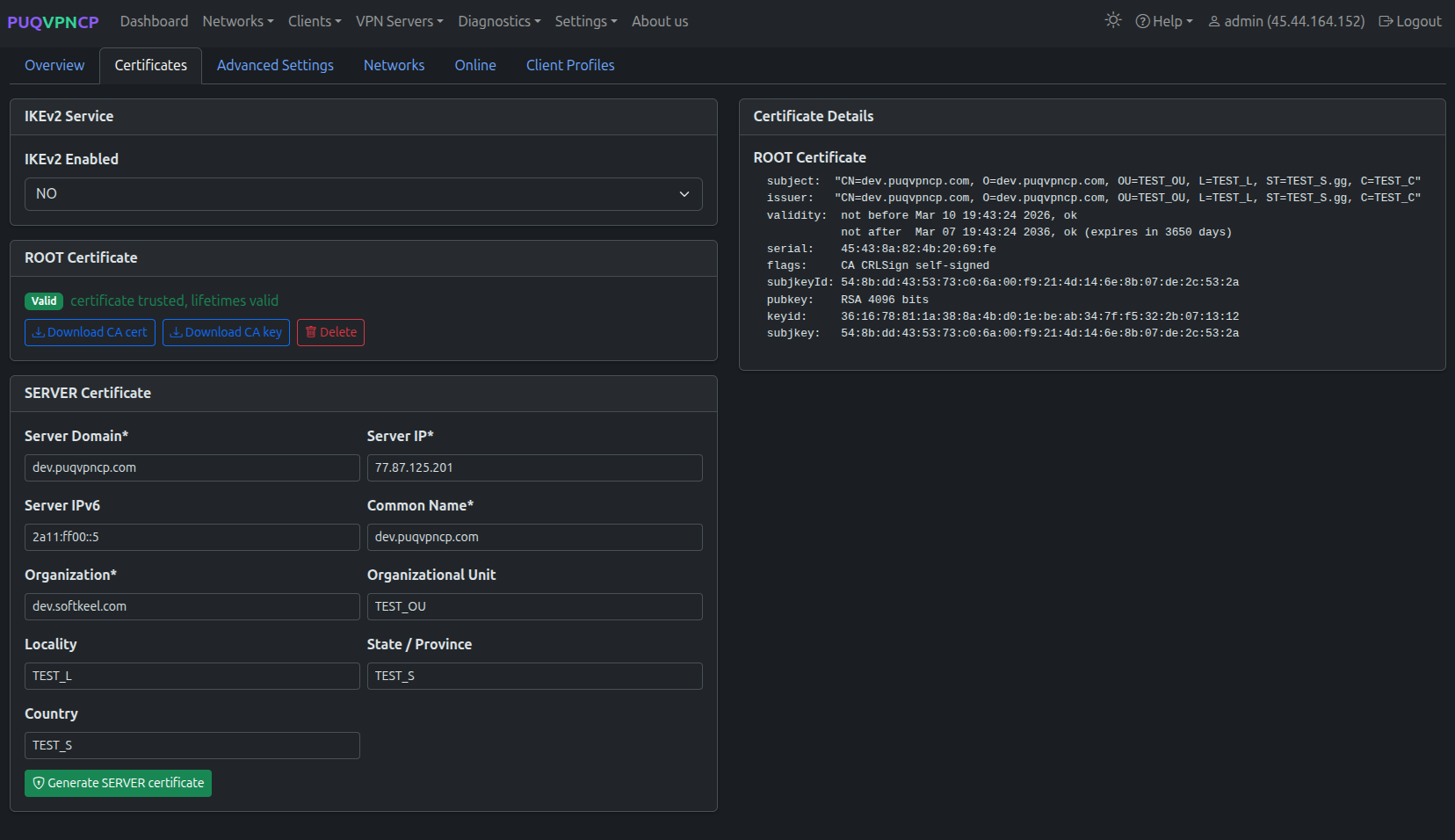

Import certificate Import existing CA and server certificates

If you have existing certificates from another strongSwan installation, you can import them instead of generating new ones.

DNS

IKEv2 DNS configuration

Configure DNS servers pushed to IKEv2 clients.

Status

IKEv2 status IKEv2 service status

Shows the strongSwan daemon status, starter and charon PIDs, and current active SAs.

Online Users

IKEv2 online users

Lists all active IKEv2 security associations with:

Client name and network
Virtual IP assigned
Remote (real) IP
IKE and ESP proposals in use
Connection duration

Client Profiles

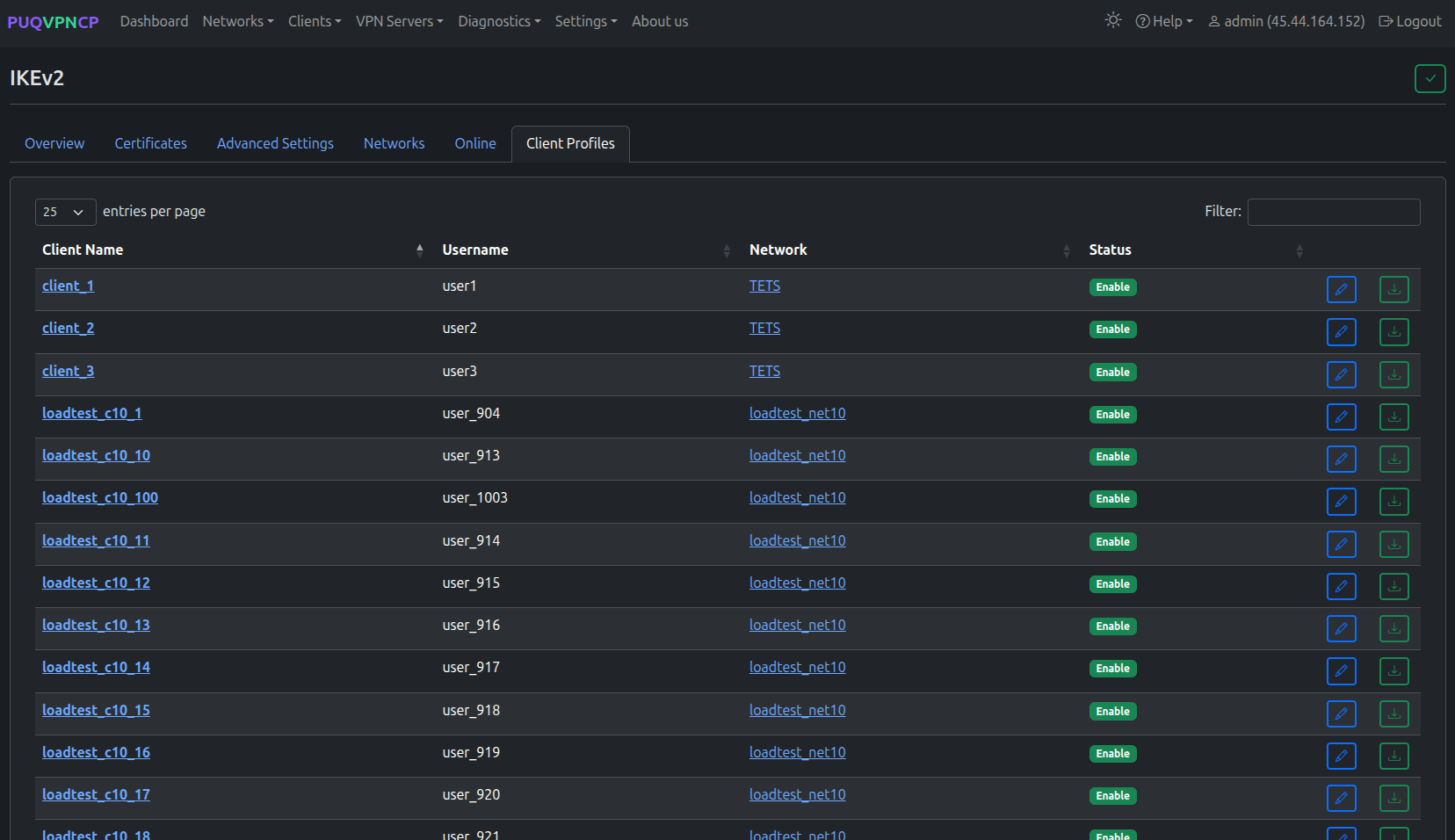

IKEv2 client profiles — all clients across all networks

Lists all IKEv2 clients across all networks:

Column	Description
Client Name	Client name (link to client page)
Username	System user who owns this client
Network	Network this client belongs to
Status	Enable/Disable

Each client row has buttons to edit the client and download the .sswan configuration file.

Client Configuration

IKEv2 clients authenticate using username/password (EAP-MSCHAPv2) with server certificate validation.

Configuration by Platform

Platform	Method
iOS	Settings > VPN > Add Configuration > IKEv2. Or import `.mobileconfig` profile
macOS	System Preferences > Network > + > VPN > IKEv2
Windows	Settings > Network > VPN > Add VPN > IKEv2
Android	Settings > VPN > + > IKEv2/IPsec MSCHAPv2 (or use strongSwan app)
Linux	NetworkManager or `charon-cmd`

Required Client Settings

Field	Value
Server	Your VPN domain or IP
Remote ID	Same as server (domain or IP)
Authentication	Username (EAP)
Username / Password	From client's IKEv2 tab
CA Certificate	The Root CA certificate (download from panel)

Tip: Use One-Time Links to give users a downloadable .sswan profile that imports all settings automatically.

Per-Network Configuration

Each network can override the global IKEv2 settings:

ESP and IKE proposals
SA lifetimes
DPD delay and timeout

See the IKEv2 tab in Networks for details.
