12. Firewall

Overview

PUQVPNCP manages the Linux firewall (iptables / ip6tables) with two layers:

  1. Global firewall — server-wide policies, Pre-Network and Post-Network custom rules, ipset
  2. Per-network firewall — auto-generated filter, NAT, DNAT, and mangle rules per network

Global Firewall

Navigate to Settings > Firewall.

Settings Tab

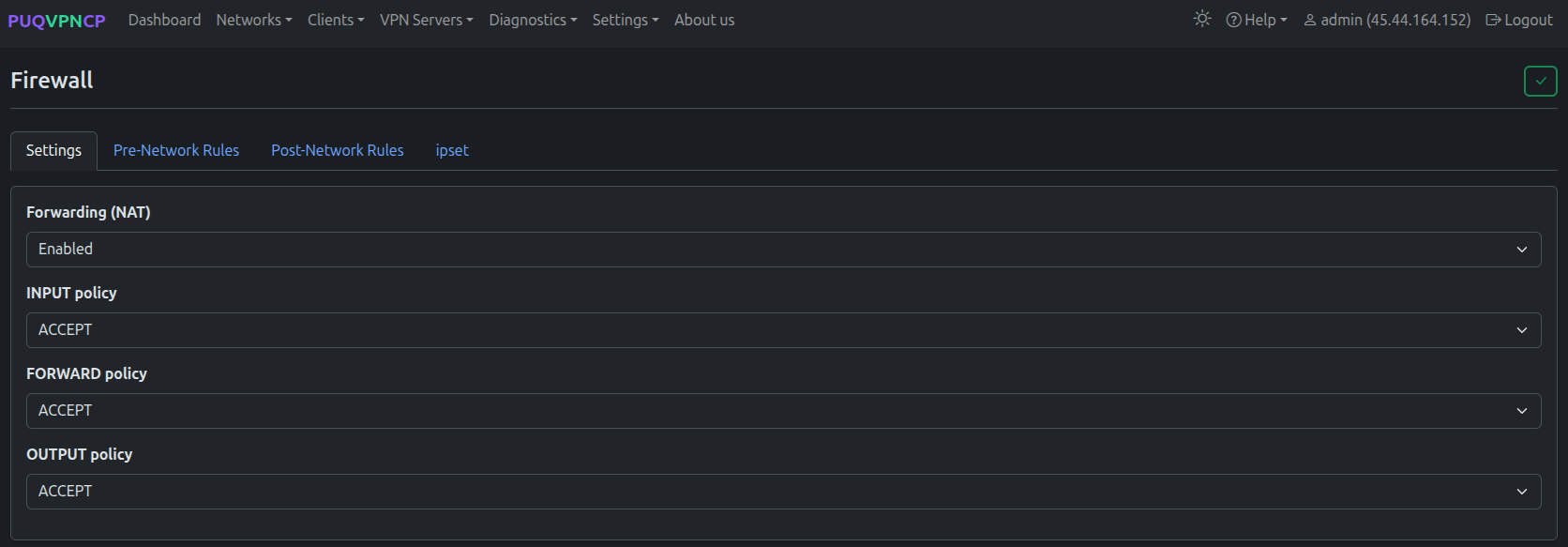

Firewall settings Firewall settings — global policies

Setting Description Recommended
Forwarding (NAT) Enable SNAT for VPN clients Enabled
INPUT policy Default for incoming traffic ACCEPT
FORWARD policy Default for forwarded traffic ACCEPT
OUTPUT policy Default for outgoing traffic ACCEPT

Pre-Network Rules

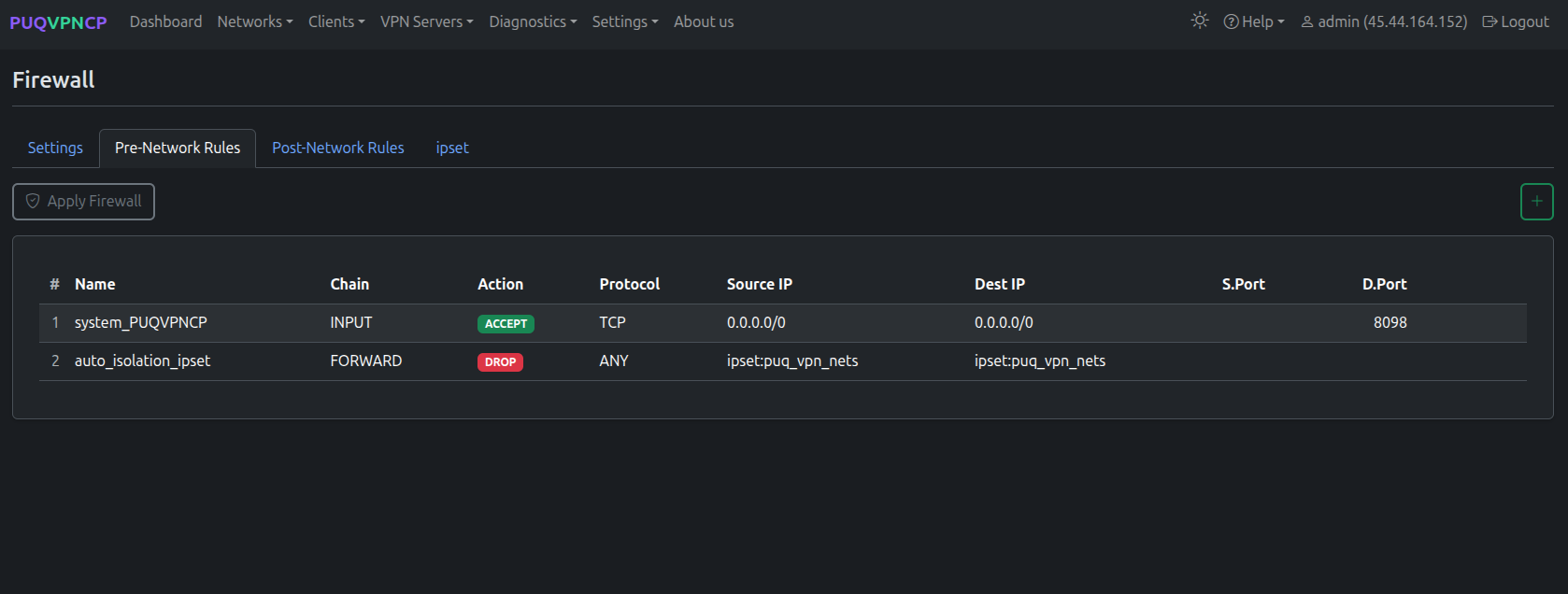

Pre-network rules Pre-Network rules — executed before per-network rules

Pre-Network rules are applied before any per-network rules. Use them for:

  • Allowing access to external services (monitoring, backups)
  • Blocking specific IPs globally
  • Custom INPUT rules for the server itself

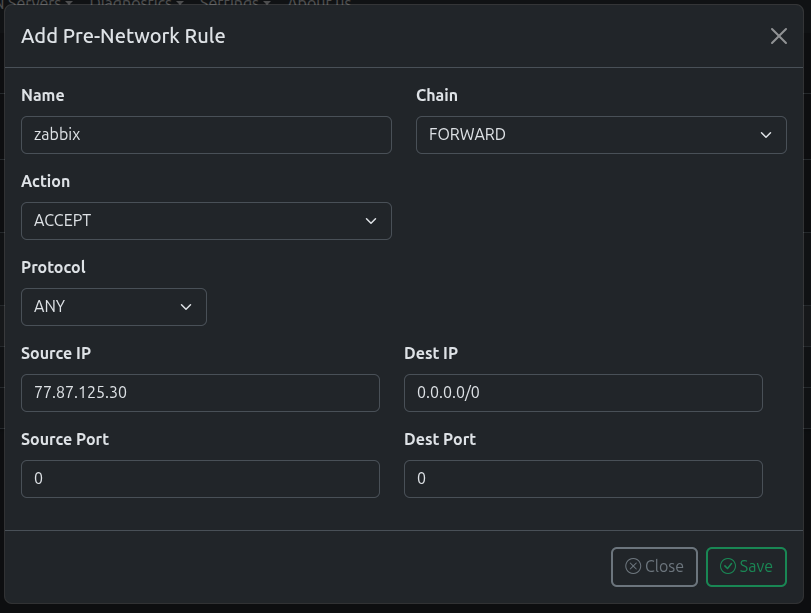

Add pre-network rule Adding a custom pre-network rule

Field Description
Name Rule identifier
Chain INPUT, FORWARD, or OUTPUT
Action ACCEPT, DROP, REJECT, LOG
Protocol TCP, UDP, ICMP, or ANY
Source IP / Dest IP IP addresses or CIDR ranges
Source Port / Dest Port Port numbers (0 = any)

After adding rules, click Apply Firewall to activate.

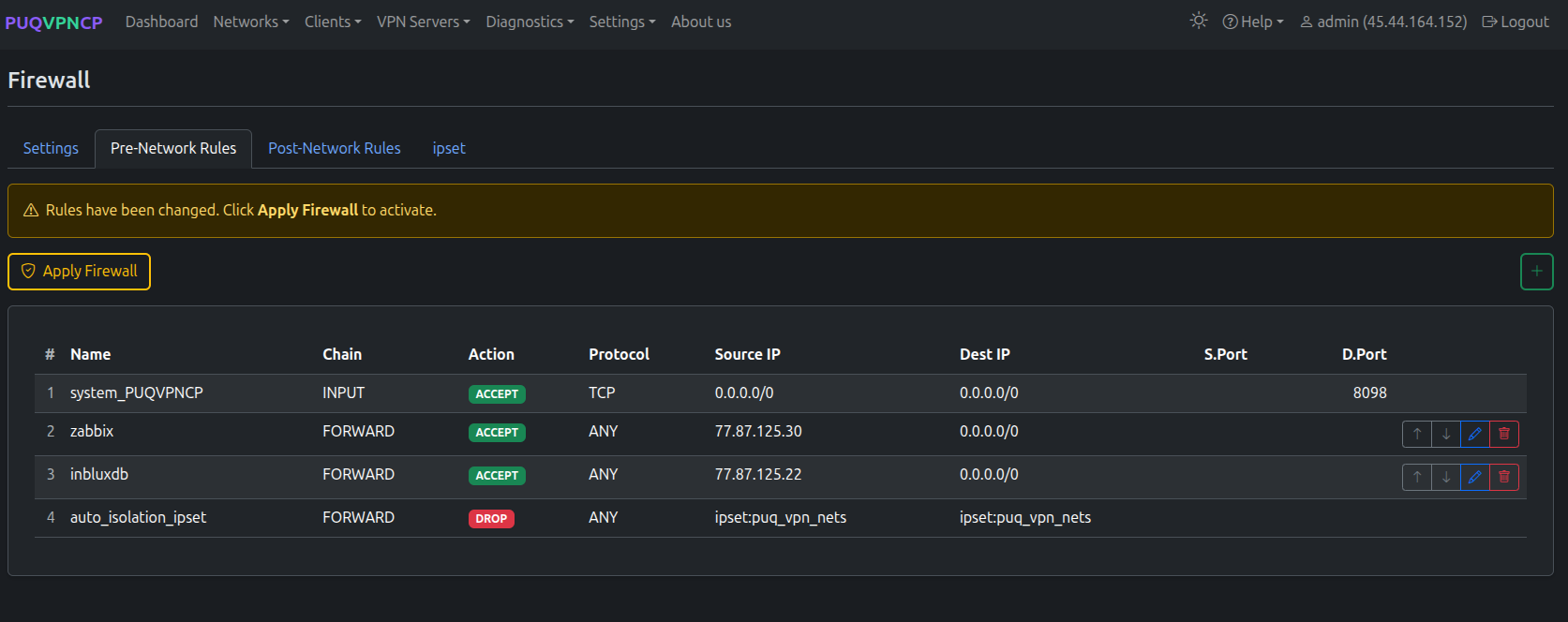

Rules changed Rules modified — warning to apply

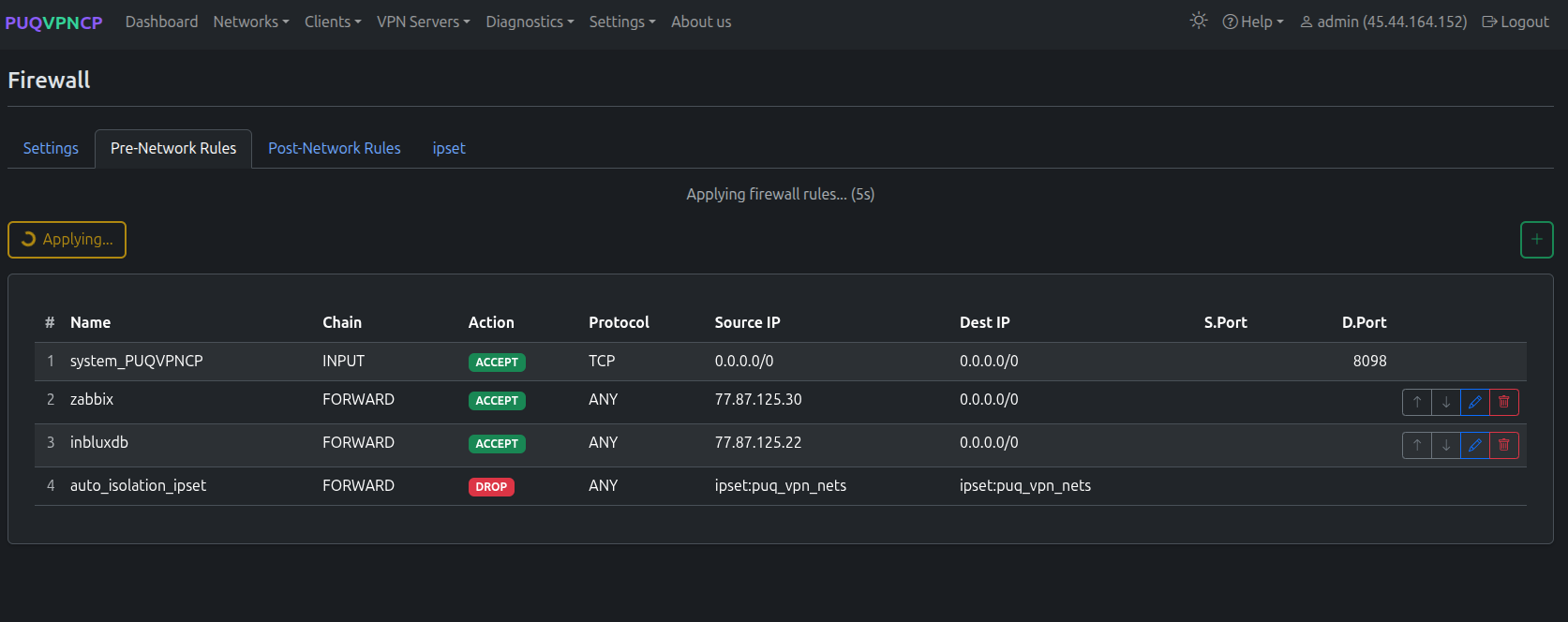

Applying Applying firewall rules

Post-Network Rules

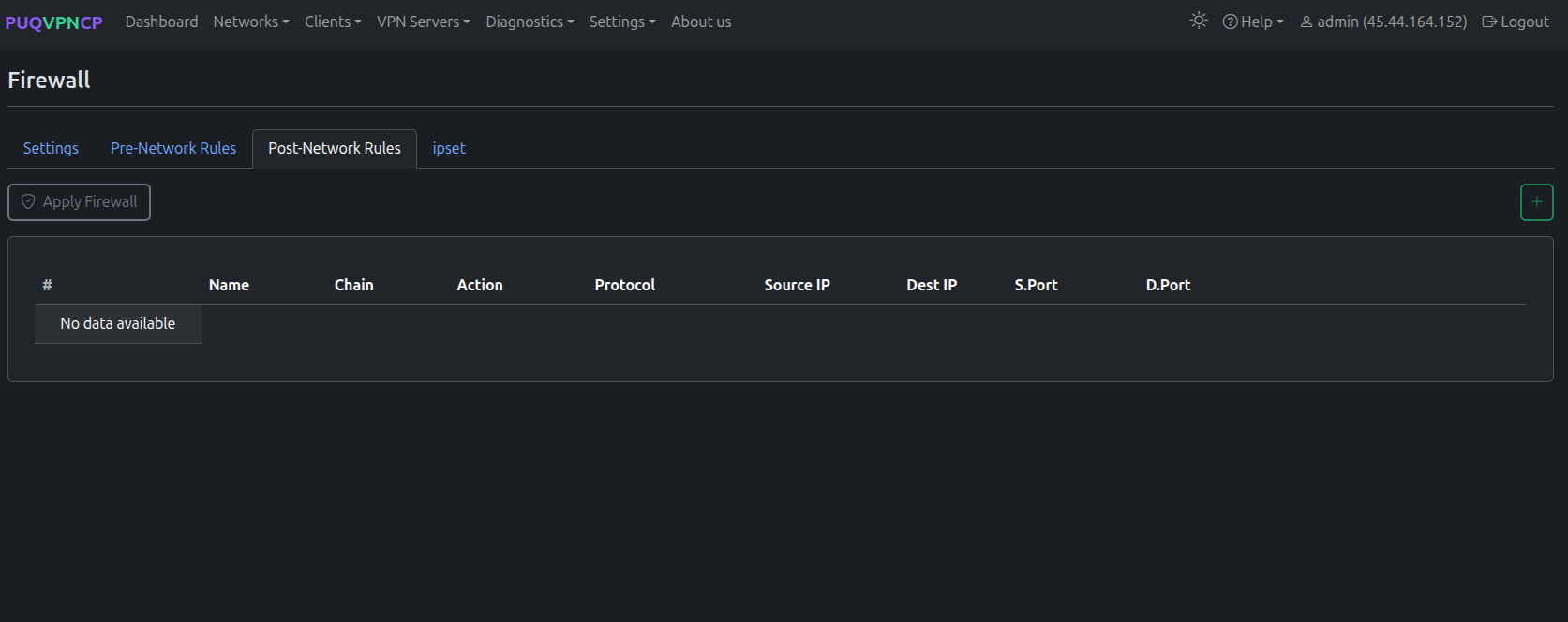

Post-network rules Post-Network rules — executed after per-network rules

Same format as Pre-Network rules, but applied after per-network rules.

ipset Tab

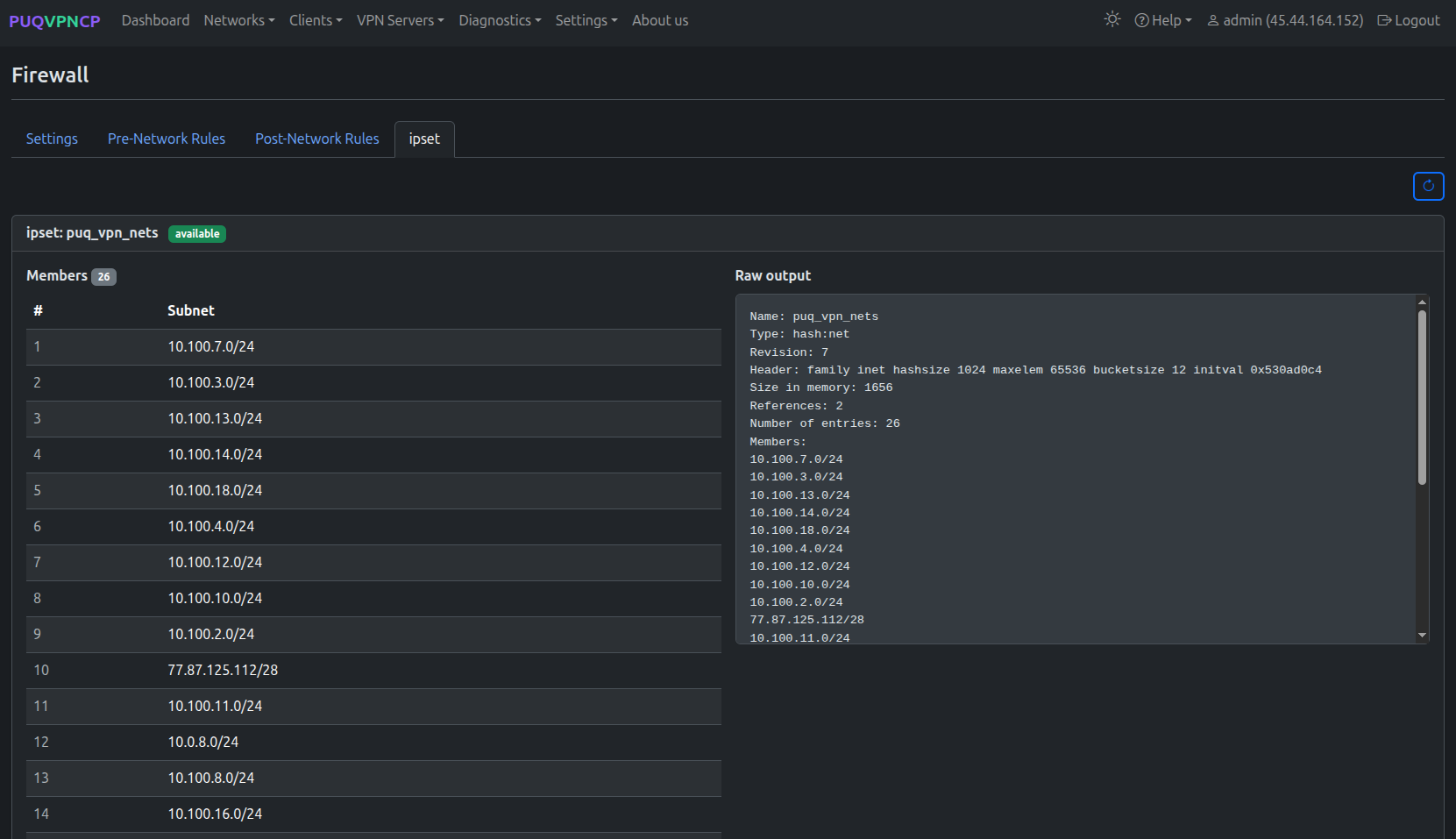

ipset ipset — VPN network subnets for global isolation

The puq_vpn_nets ipset contains all VPN network subnets and is used by the auto_isolation_ipset rule to prevent inter-network traffic (unless Peering rules allow it).

Per-Network Firewall

Each network has its own firewall tab with auto-generated rules.

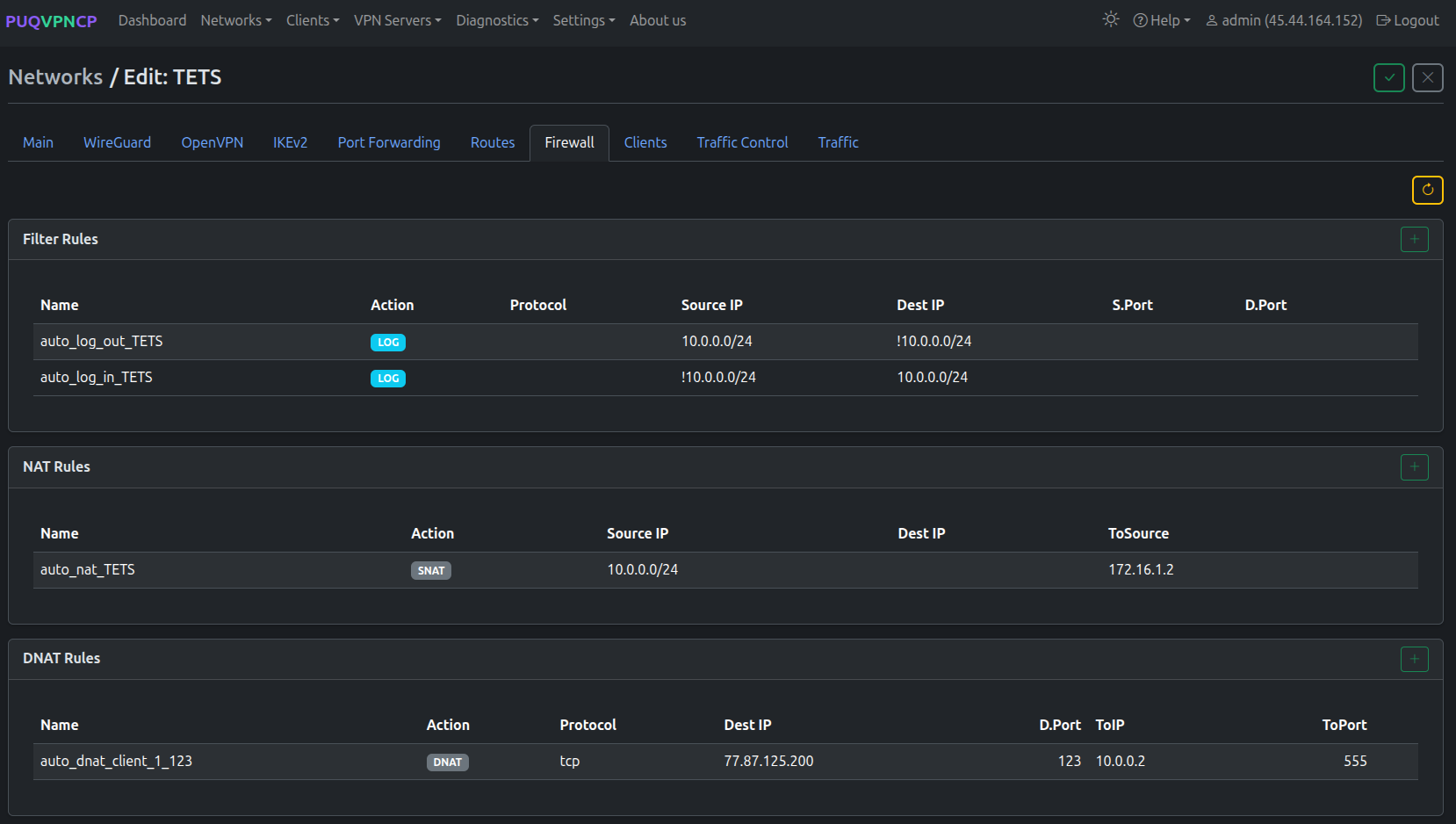

Network firewall Per-network firewall — Filter, NAT, DNAT rules

Rule Types

Type Description
Filter Rules Traffic logging (auto_log_out/in) and custom filter rules
NAT Rules SNAT for internet access (auto_nat_NETWORK → upstream IP)
DNAT Rules Port forwarding rules (from Port Forwarding tab)
Mangle Rules Traffic marking for TC bandwidth control and policy routing

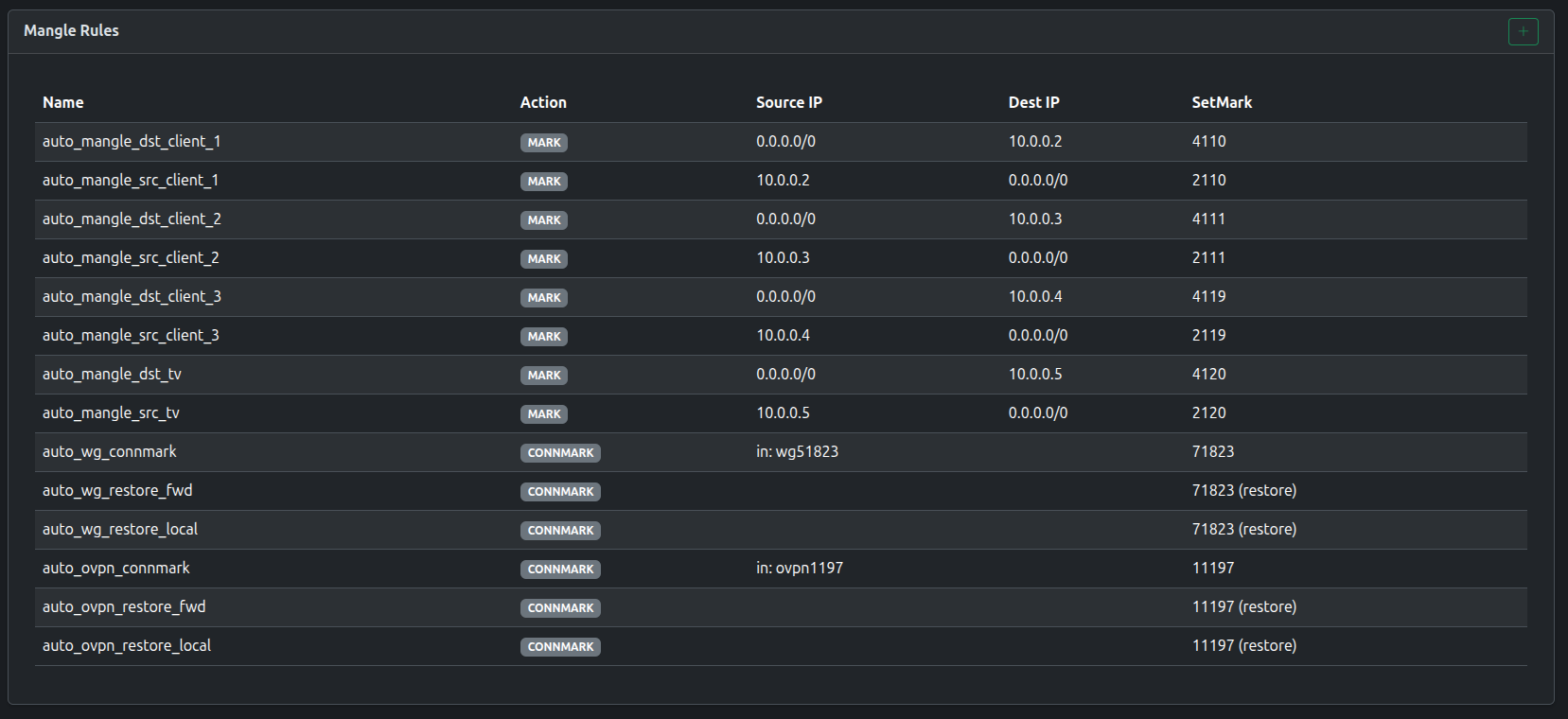

Mangle rules Mangle rules — per-client traffic marks and CONNMARK for policy routing

Mangle rules are fully auto-generated:

  • auto_mangle_dst_CLIENT / auto_mangle_src_CLIENT — mark packets for traffic control
  • auto_wg_connmark / auto_ovpn_connmark — CONNMARK on VPN interfaces for policy routing
  • auto_wg_restore_fwd / auto_wg_restore_local — CONNMARK restore for return traffic

Rule Execution Order

1. Pre-Network Rules    (global, custom)
2. Per-Network Rules    (auto-generated per network)
   +-- Filter Rules     (logging, custom filters)
   +-- NAT Rules        (SNAT for upstream)
   +-- DNAT Rules       (port forwarding)
   +-- Mangle Rules     (TC marks, CONNMARK)
3. Post-Network Rules   (global, custom)
4. Global Policies      (INPUT/FORWARD/OUTPUT defaults)
