10. Upstreams (WireGuard Tunnels)

Overview

Upstreams allow you to route VPN client traffic through external WireGuard VPN servers instead of the PUQVPNCP server's own internet connection. This creates a multi-hop VPN chain:

VPN Client ---> PUQVPNCP Server ---> WireGuard Upstream ---> Internet
                                       (wgupN)

Each upstream is a WireGuard tunnel to a remote VPN server. Networks can be individually assigned to different upstreams, giving you full control over which exit IP each group of clients uses.

Why Use Upstreams?

1. Geographic IP Rotation

Assign different networks to upstreams in different countries. Clients on "Network US" exit through a US server, clients on "Network EU" exit through a European server — all managed from a single PUQVPNCP instance.

                         +-- wgup0 (US server)  ---> US IP
                         |
Client ---> PUQVPNCP -----+-- wgup1 (EU server)  ---> EU IP
                         |
                         +-- direct (ens18)      ---> Server IP

2. Multi-Hop Privacy

Add an extra encryption layer between your server and the internet. Even if someone monitors your server's traffic, they see encrypted WireGuard traffic to the upstream, not the client's actual browsing.

3. ISP / IP Reputation Bypass

When your server's IP is blocked or blacklisted (e.g., by streaming services), route traffic through a clean upstream IP without migrating your entire infrastructure.

4. Dedicated Exit Nodes for Tenants

In a multi-tenant setup, give each customer their own exit IP:

Network Upstream Exit IP Customer
corp_acme wgup0 (Frankfurt) 185.x.x.1 Acme Corp
corp_globex wgup1 (London) 51.x.x.2 Globex Inc
internal direct (ens18) 77.x.x.200 Internal

5. Load Distribution

Spread bandwidth across multiple upstream tunnels to avoid congestion on a single exit point.

6. Failover Planning

If your primary upstream goes down, simply reassign the network to a backup upstream. Client configurations don't change — only the server-side routing updates.

Upstreams Page

Navigate to VPN Servers > Upstreams to manage system and WireGuard upstreams.

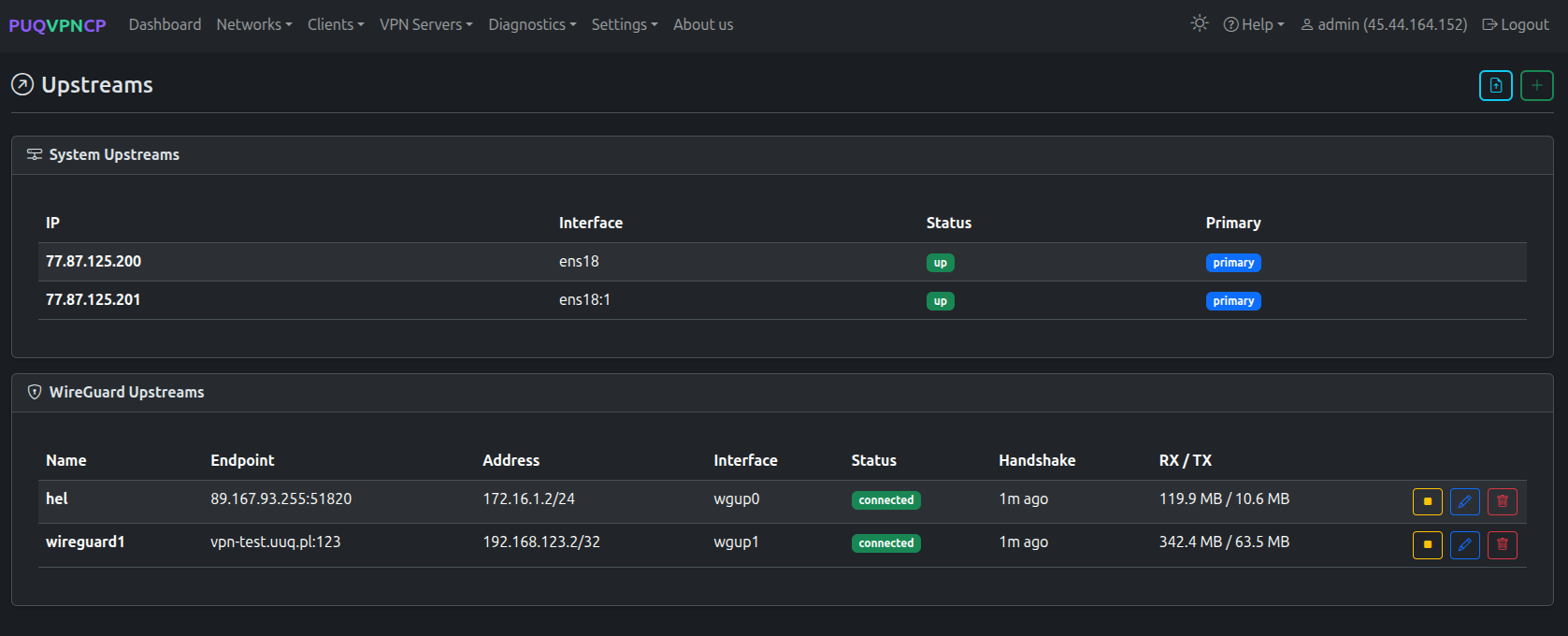

Upstreams list Upstreams page — System upstreams (server IPs) and WireGuard upstreams

System Upstreams

The top section shows all server IP addresses available as direct internet exits:

Field Description
IP Server IP address
Interface Network interface (e.g., ens18, ens18:1)
Status UP / DOWN
Primary Whether this IP is marked as primary

WireGuard Upstreams

The bottom section shows configured WireGuard tunnels:

Field Description
Name Upstream identifier
Endpoint Remote WireGuard server address:port
Address Local tunnel IP (assigned by remote server)
Interface Auto-generated interface name (wgup0, wgup1, ...)
Status connected / disconnected
Handshake Time since last successful handshake
RX / TX Traffic through the tunnel

Creating an Upstream

Click the + button to add a new WireGuard upstream.

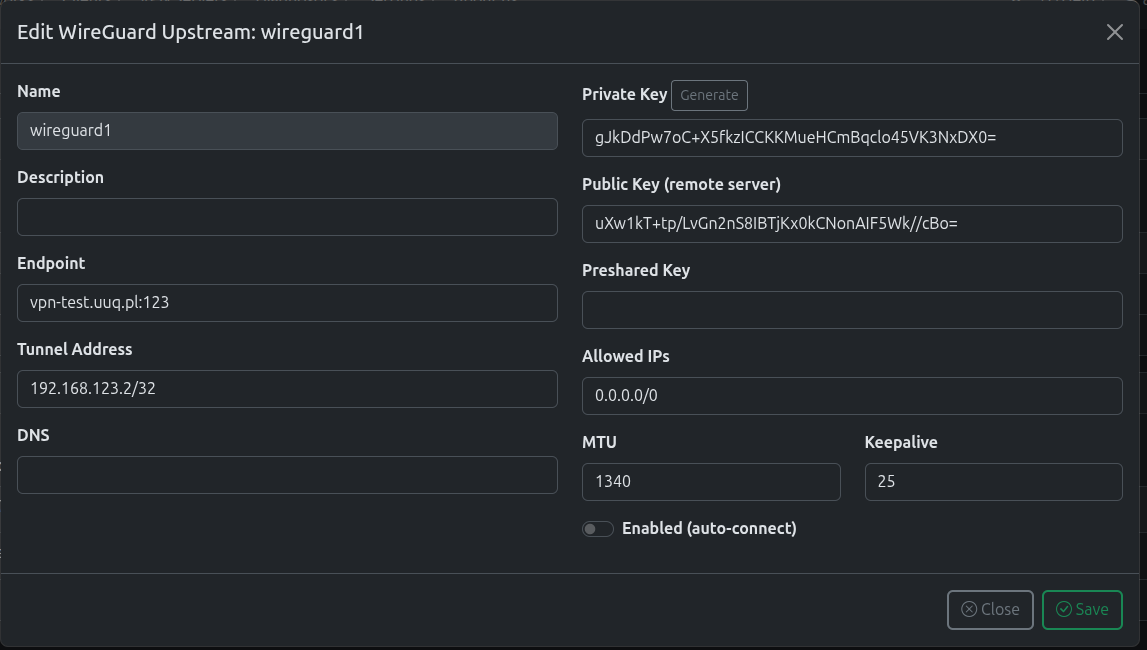

Edit upstream Edit WireGuard upstream configuration

Field Description
Name Unique name for this upstream
Description Optional description
Endpoint Remote server address and port (e.g., vpn.example.com:51820)
Tunnel Address Your local IP in the tunnel (e.g., 172.16.1.2/24)
DNS Optional DNS through the tunnel
Private Key Your WireGuard private key. Click Generate to create a new key pair.
Public Key (remote server) The remote server's public key
Preshared Key Optional pre-shared key for extra security
Allowed IPs Which traffic to route through the tunnel (usually 0.0.0.0/0)
MTU Tunnel MTU (default: 1340 for double-encapsulation)
Keepalive Persistent keepalive interval (default: 25)
Enabled (auto-connect) Automatically connect on service start

Importing a WireGuard Config

Click the Import button to paste an existing WireGuard .conf file.

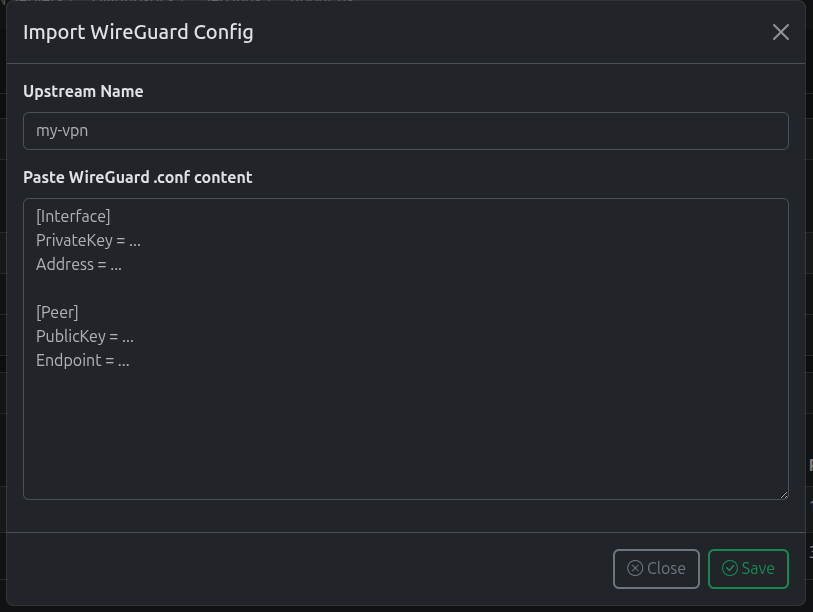

Import config Import WireGuard configuration from a .conf file

Paste the content of a standard WireGuard configuration file:

[Interface]
PrivateKey = ...
Address = 172.16.1.2/24

[Peer]
PublicKey = ...
Endpoint = vpn.example.com:51820
AllowedIPs = 0.0.0.0/0

The parser automatically extracts all fields and creates the upstream.

Assigning an Upstream to a Network

After creating an upstream, assign it to any network:

  1. Go to Networks > Edit your network
  2. In the Upstream dropdown, select the WireGuard upstream
  3. Click Save and Reload

The network's traffic will now be routed through the selected upstream tunnel.

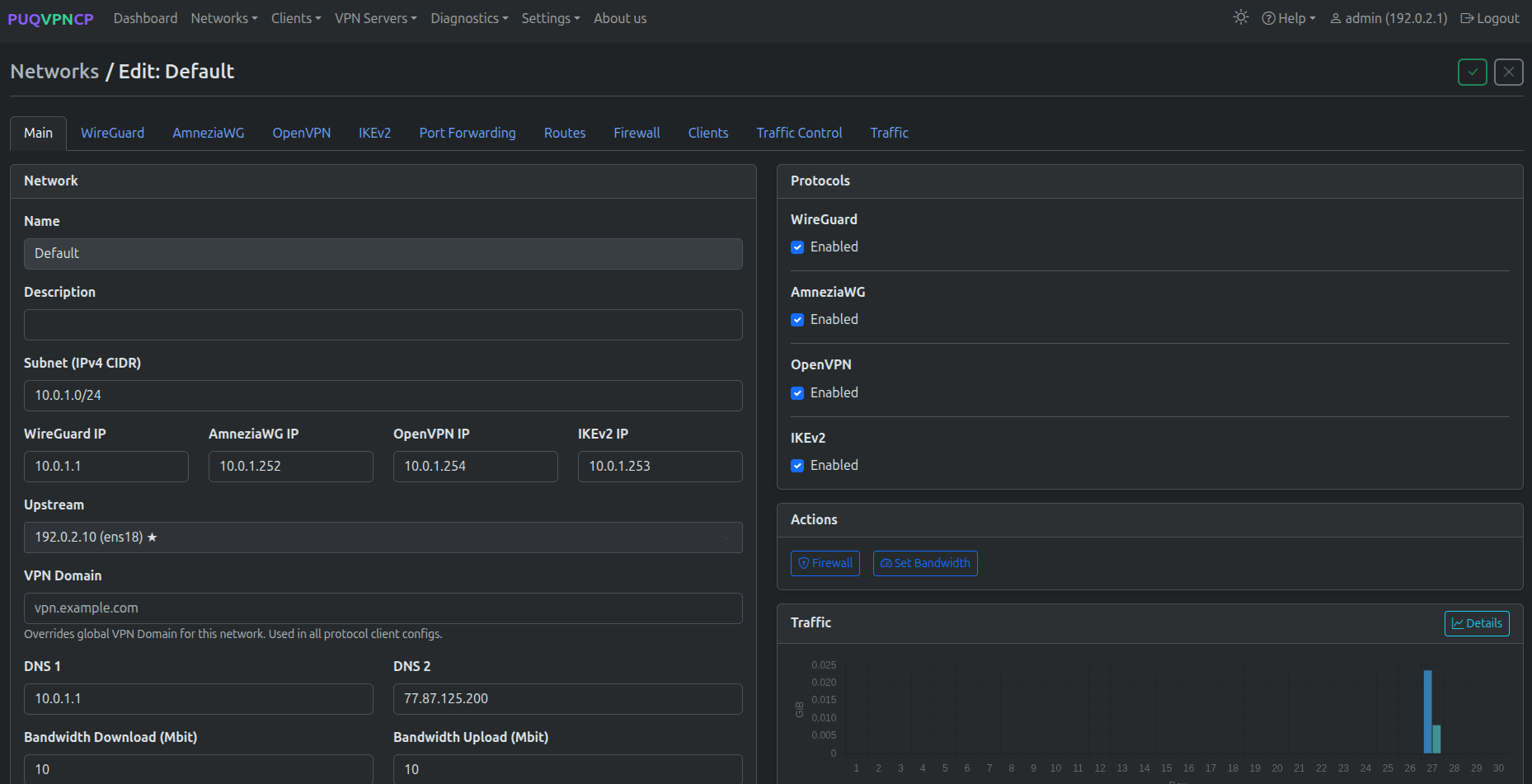

Network upstream selector Network edit — Upstream field showing a WireGuard upstream selection

How It Works Internally

When a network uses a WireGuard upstream:

1. Client traffic arrives on VPN interface (wg51823, ovpn1197, etc.)
2. iptables mangle marks traffic with CONNMARK
3. Policy routing (ip rule + ip route) directs marked traffic to wgupN
4. SNAT replaces the source IP with the upstream tunnel IP
5. Traffic exits through the WireGuard upstream to the internet
6. Return traffic follows the same path back to the client

Routing Chain

VPN Client (10.0.0.2)
    |
    ▼
WireGuard/OpenVPN/IKEv2 interface
    |
    ▼
iptables CONNMARK (set mark on wg/ovpn interface)
    |
    ▼
ip rule: fwmark → lookup table N
    |
    ▼
ip route: default via wgupN (in table N)
    |
    ▼
iptables SNAT: source → tunnel IP (172.16.1.2)
    |
    ▼
WireGuard upstream tunnel (wgupN)
    |
    ▼
Remote VPN server → Internet

Note: The upstream tunnel uses a reduced MTU (1340 by default) to accommodate double encapsulation.

Practical Setup Example

Scenario: Route office network through a US VPN server

Step 1: Get a WireGuard VPN account from a US provider (e.g., Mullvad, ProtonVPN, or your own server).

Step 2: In PUQVPNCP, go to VPN Servers > Upstreams, click Import, paste the .conf file.

Step 3: Connect the upstream (click the Play button).

Step 4: Verify the upstream is connected (Status: connected, Handshake: recent).

Step 5: Go to Networks, edit your office network, select the new upstream in the Upstream dropdown.

Step 6: Save and Reload. All clients on that network now exit through the US IP.

Troubleshooting

Issue Solution
Upstream shows disconnected Check endpoint address, keys, and firewall on both sides
No handshake Verify the remote server's public key and that UDP port is open
Clients have no internet Check that Allowed IPs is 0.0.0.0/0 and SNAT is working
Slow speeds Reduce MTU, check upstream bandwidth, ensure keepalive is set
