VM Management

Proxmox KVM module WHMCS

Order now | Download | FAQ

The VM Management page provides a centralized view of every KVM virtual machine across every Proxmox server — their current status, assigned IPs with reverse DNS, deployment history, and per-VM admin actions.

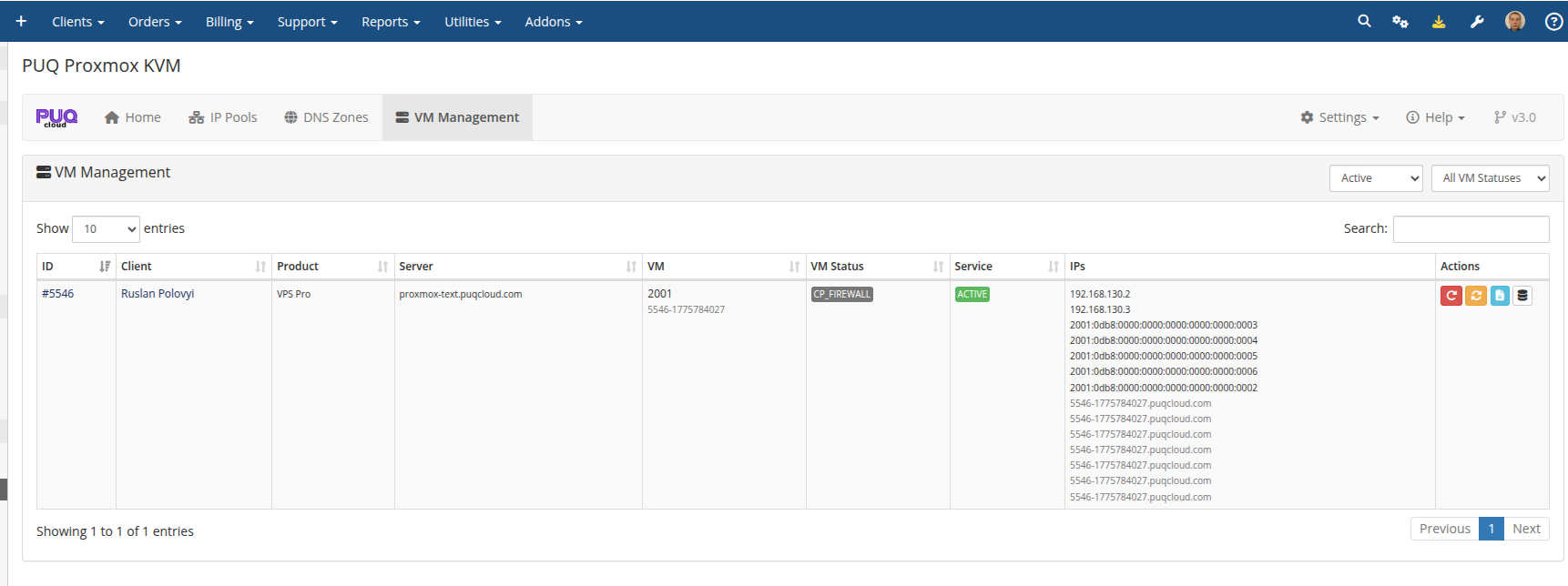

VM list

Navigate to Addons → PUQ Proxmox KVM → VM Management.

The list is server-side-paginated with search and sorting. Two dropdown filters above the table narrow the view by WHMCS service status and by VM state; both remember your last choice in the browser, so the list opens the way you left it next time.

Columns

Column	Description
ID	WHMCS service ID (click for client services page).
Client	Client name with a link to the client profile.
Product	Product / plan name.
Server	Proxmox server name.
VM	Proxmox VM ID and internal VM name.
VM Status	Module lifecycle status — see status reference below.
Service	WHMCS service status: Active, Suspended, Terminated, Cancelled, Pending.
IPs	Every assigned IPv4 / IPv6 address paired with its current reverse DNS name on the line below.
Actions	Per-VM admin buttons: Redeploy, Reset, Log, DB Record, (Delete Record when applicable).

IPs column — IPs with rDNS

Starting with v3.2, each IP is shown together with its rDNS on a second, smaller line:

192.168.130.2
  5546-1776530141.puqcloud.com

2001:0db8:0000:0000:0000:0000:0000:0007
  5546-1776530141.puqcloud.com

Visual grouping makes it easy to scan. IPs without a rDNS entry simply don't have the second line.

Administrative actions

Button	Visible when	What it does
Redeploy (red, circular-arrow)	vm_status != ready	Destroys the VM on Proxmox, clears IPs, resets logs, sets state back to creation — the full deploy pipeline runs from scratch on the next cron tick. Destructive.
Reset (yellow, sync)	always	Opens the Reset VM Status modal — switch the VM to any of the re-runnable states. See below.
Log (blue, file)	always	Opens the VM Log modal with per-run and per-step history.
DB Record (grey, database)	always	Opens the raw puqProxmoxKVM_vm_info row for inspection and manual editing. Last-resort troubleshooting tool.
Delete Record (red, trash)	vm_status in (error_terminate, remove)	Removes the row from puqProxmoxKVM_vm_info. Does not touch Proxmox or tblhosting. Confirmation dialog warns explicitly.

Reset VM Status

The Reset modal lets you switch a VM to any of the re-runnable states. An embedded reference table explains when each one is appropriate:

Status	Use case
ready	Return the VM to the normal "everything is fine" state. Use after you've finished a manual fix and want cron to stop touching it.
creation	Retry deploy from the beginning — typically after fixing the underlying reason an earlier deploy failed.
set_ip	Retry only the IP allocation step.
change_package	Rerun the full package-change flow.
set_dns_records	Queue a full DNS resync (delete + recreate all records). Fast and safe.
terminate	Retry termination after an error_terminate.
remove	Force-mark the VM as removed (no Proxmox contact). Use only when the VM is already gone from Proxmox and you just need WHMCS to stop showing it as active.

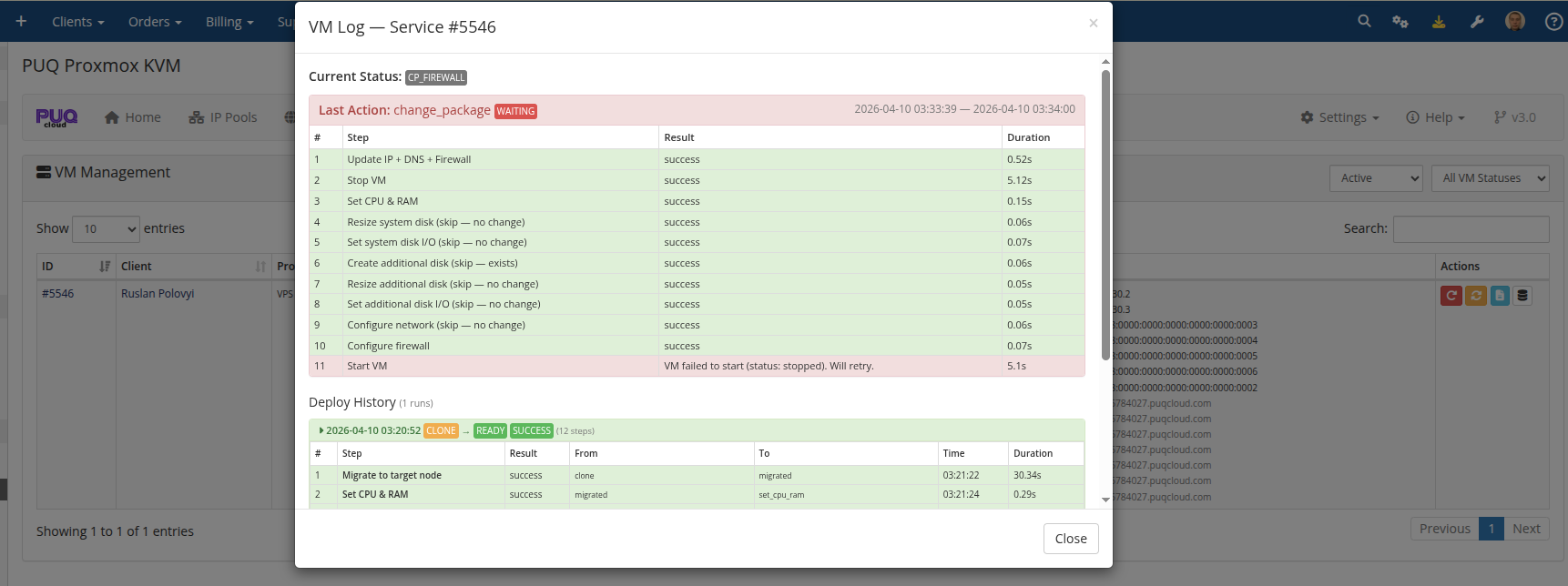

VM Log modal

The Log modal shows every pipeline run — deploy, change package, set DNS records, terminate — with per-step duration, result, and any errors. The most recent 50 runs are kept.

When the last run failed, a red banner at the top shows the failing action and error message. Each step row shows:

• Step label (human-readable).
• State transition (e.g., set_ip → clone).
• Result: success / waiting / error: ….
• Duration in seconds.
• Timestamp.

Skipped steps in change package (see Change Package) show skip (no change) and contribute zero duration.

VM status reference

Status	Meaning	Cron behavior
creation, set_ip, clone, set_dns, migrated, set_cpu_ram, set_system_disk_size, set_system_disk_bandwidth, set_created_additional_disk, set_additional_disk_size, set_additional_disk_bandwidth, set_network, set_firewall, set_cloudinit, starting	Deploy pipeline in progress at the named step.	Cron executes the next step each tick.
ready	VM is live and the client has access.	Cron ignores.
change_package, cp_update_ip, cp_stop, cp_cpu_ram, cp_system_disk_size, cp_system_disk_bandwidth, cp_additional_disk, cp_additional_disk_size, cp_additional_disk_bandwidth, cp_network, cp_firewall, cp_start	Change-package pipeline in progress.	Cron executes the next step each tick.
reinstall	Reinstall requested; needs the existing VM removed before reverting to set_ip.	Cron converts to set_ip after removing the old VM.
set_dns_records	Queued DNS resync.	Cron does a full delete+create cycle then returns to ready.
terminate	Termination queued.	Cron performs stop → backups → DNS → DELETE → cleanup.
error_terminate	Terminate failed. Admin action required.	Cron skips. Fix the cause and reset to terminate or remove.
remove	VM has been cleaned up.	Cron skips. Optionally use Delete Record to remove the row.

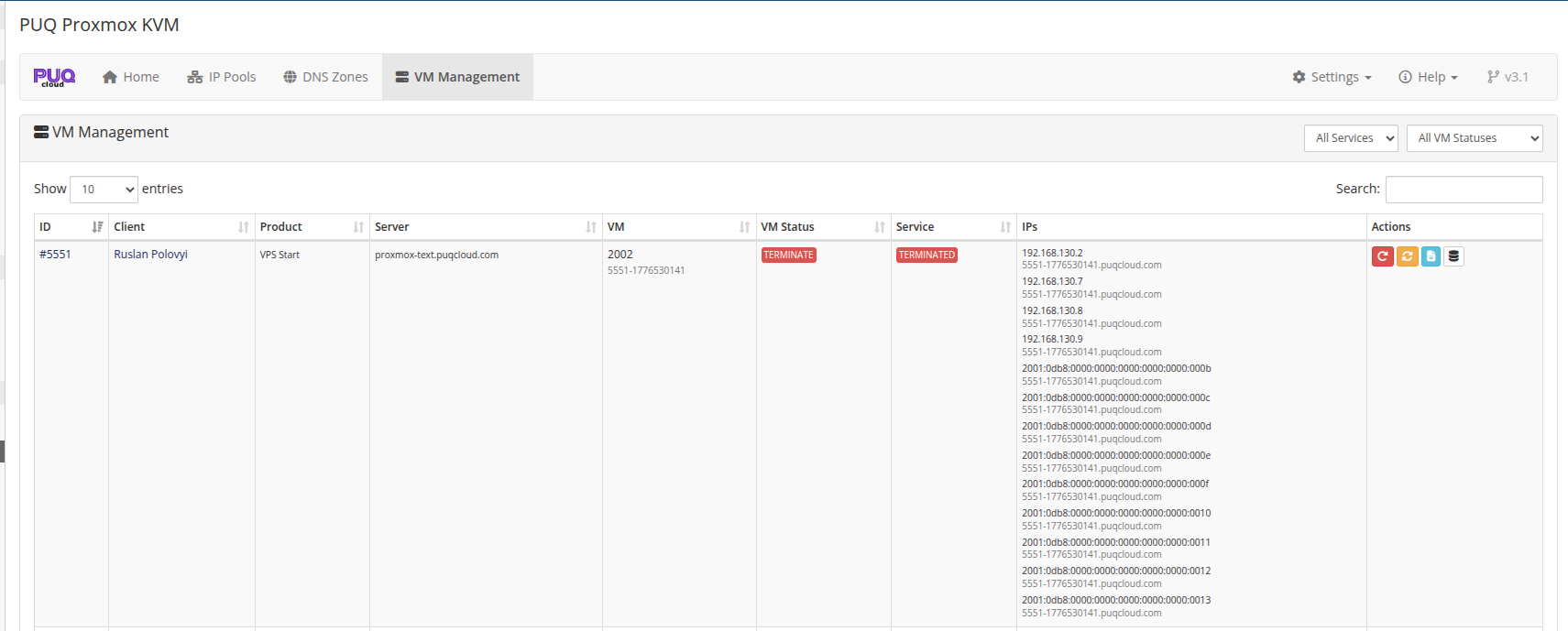

Watching an async action in VM Management

After clicking a long-running action (Terminate, Set DNS records), the VM row reflects the current state badge in real time. You can watch status changes by refreshing the page or by tracking the cron standalone output:

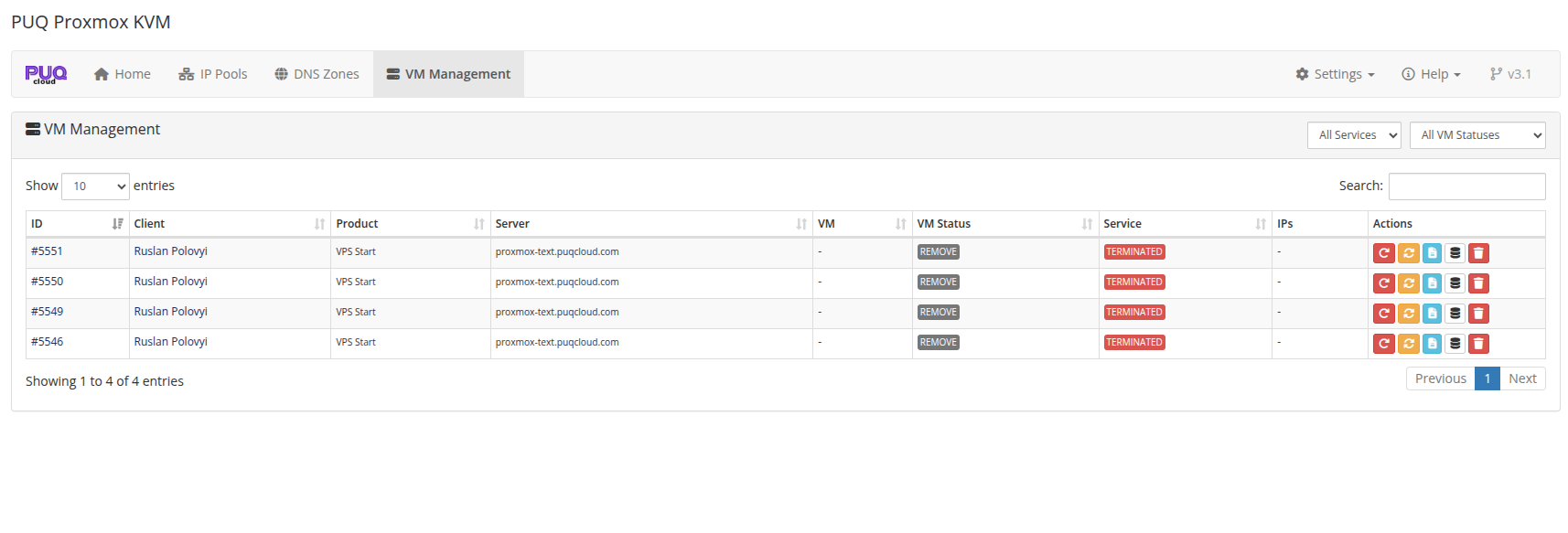

Once the cron finishes, the row appears with the final state — remove on success, error_terminate on failure:

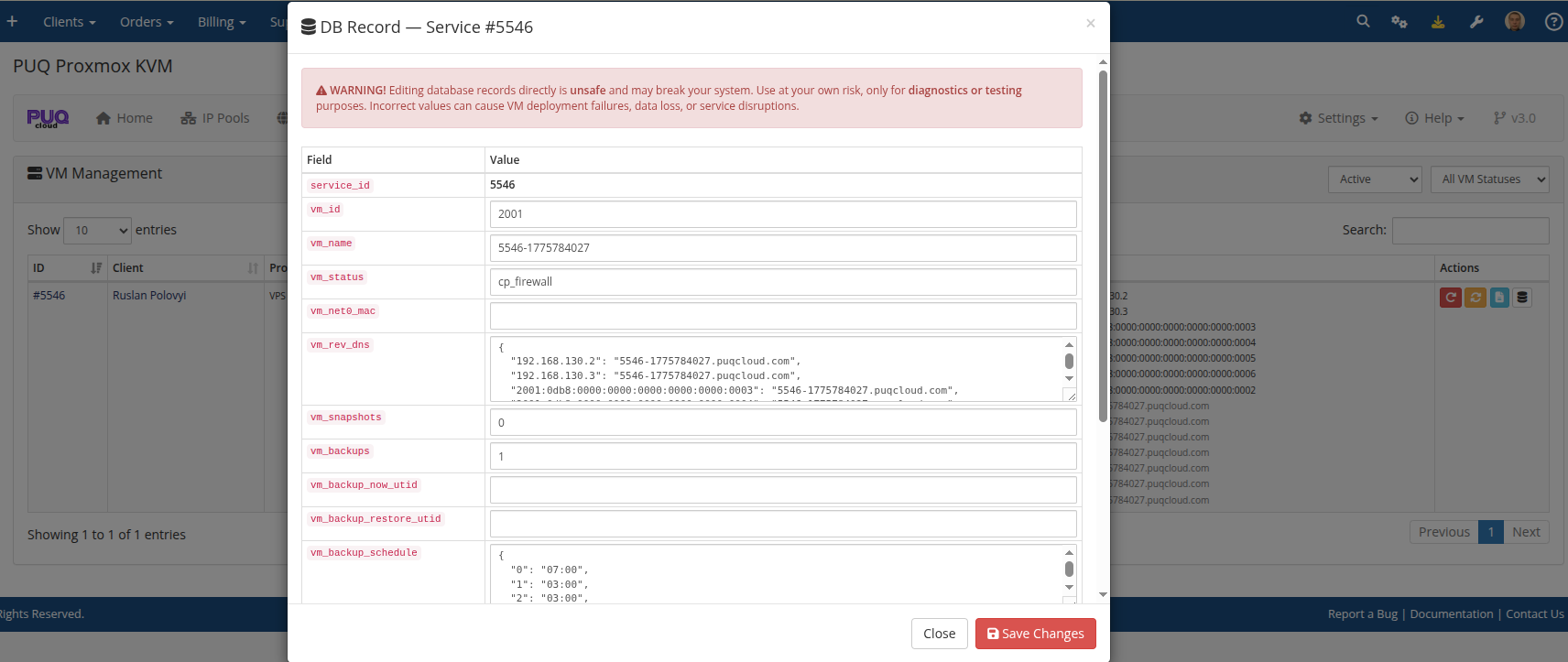

DB Record editor

For advanced troubleshooting, click DB Record to view and edit the raw puqProxmoxKVM_vm_info row:

Warning: Direct database editing bypasses every safeguard in the state machine. Incorrect values cause deployment failures, incorrect IP accounting, or data loss. Use only when you know exactly what you're doing and the usual Reset / Redeploy actions cannot help.

Related reading

• Deploy Process — deploy state machine driving creation → … → ready.
• Change Package — the change_package → … → ready flow.
• Terminate Process — async terminate, error_terminate path and recovery.
• DNS Zones & Integration — what runs when you click Set DNS records or when set_dns_records is queued.
